Add documents to a Bimlyte project
- BCF
- Import
- Project
To add a document, open your project, go to the Documents page, click Add document, choose a file, and click Add — then reference it from any issue.
Documents let you keep supporting files — specifications, drawings, photos, reports — alongside your work in Bimlyte. Once added, a document can be referenced from the issues it relates to, so anyone reviewing an issue can find the file behind it.
Steps

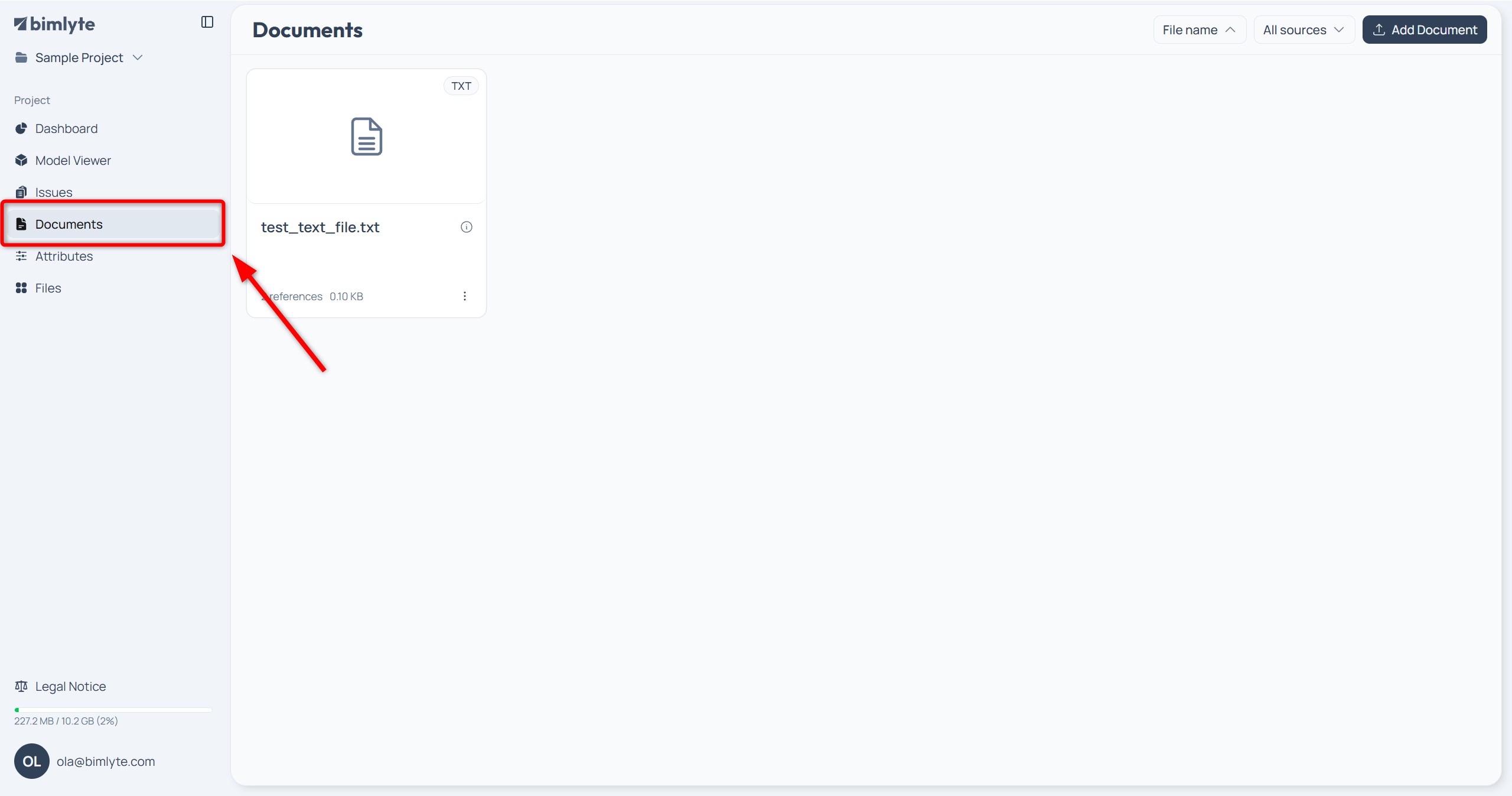

Open your project and go to Documents
Open your project and click Documents in the sidebar.

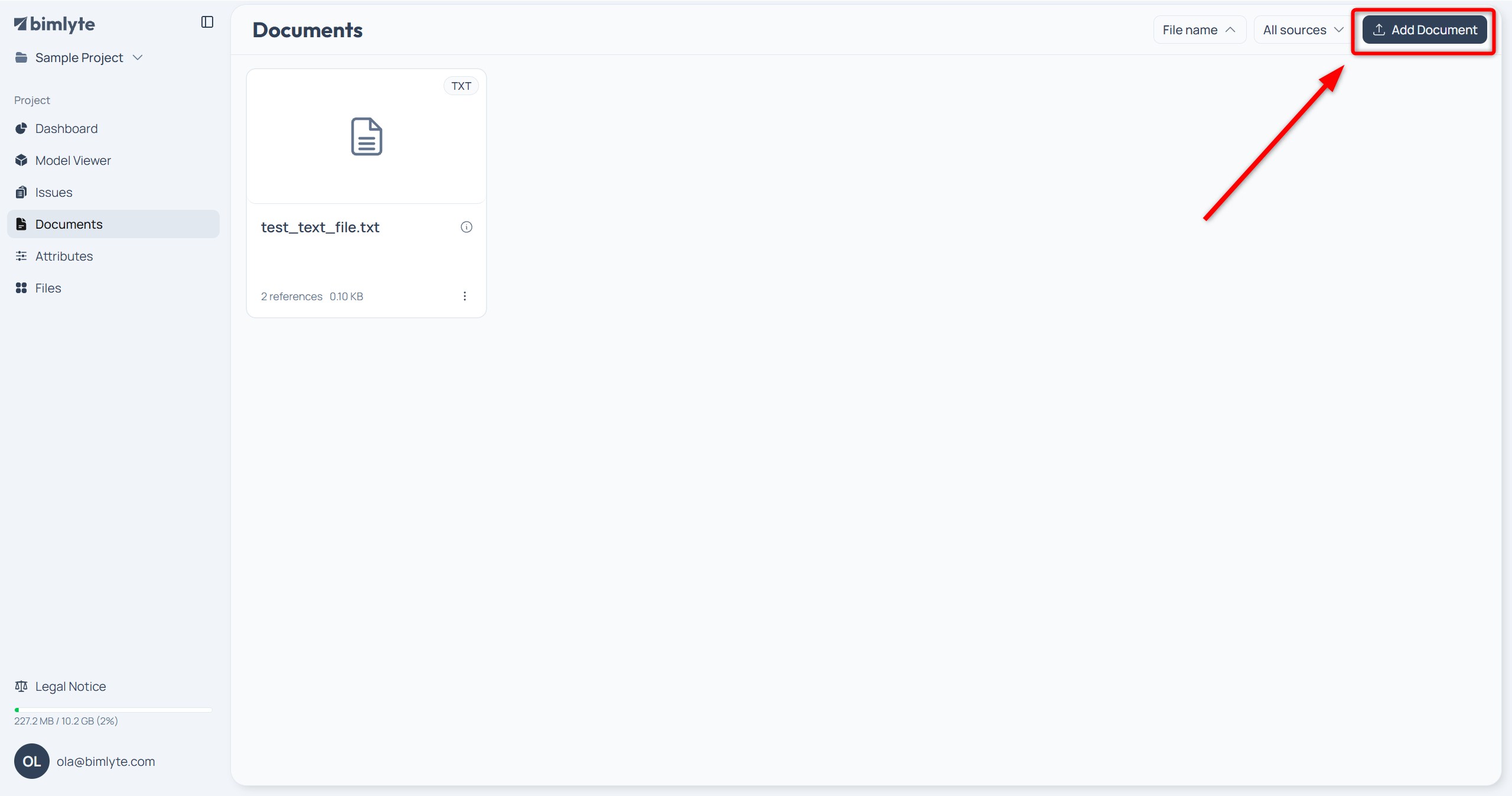

Click Add document
On the Documents page, click Add document. A dialog opens.

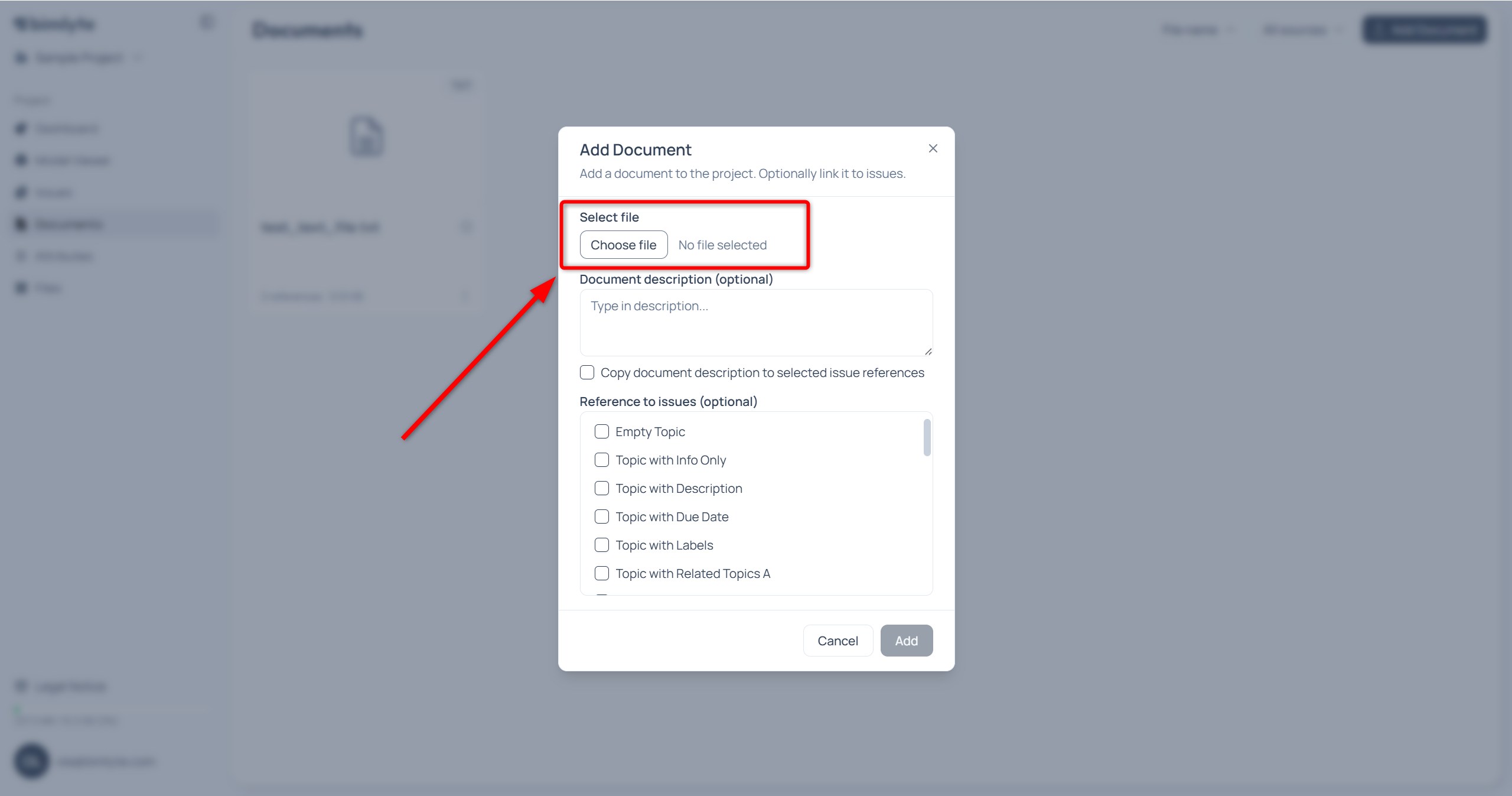

Choose the file
Click Choose file and pick the document from your computer.

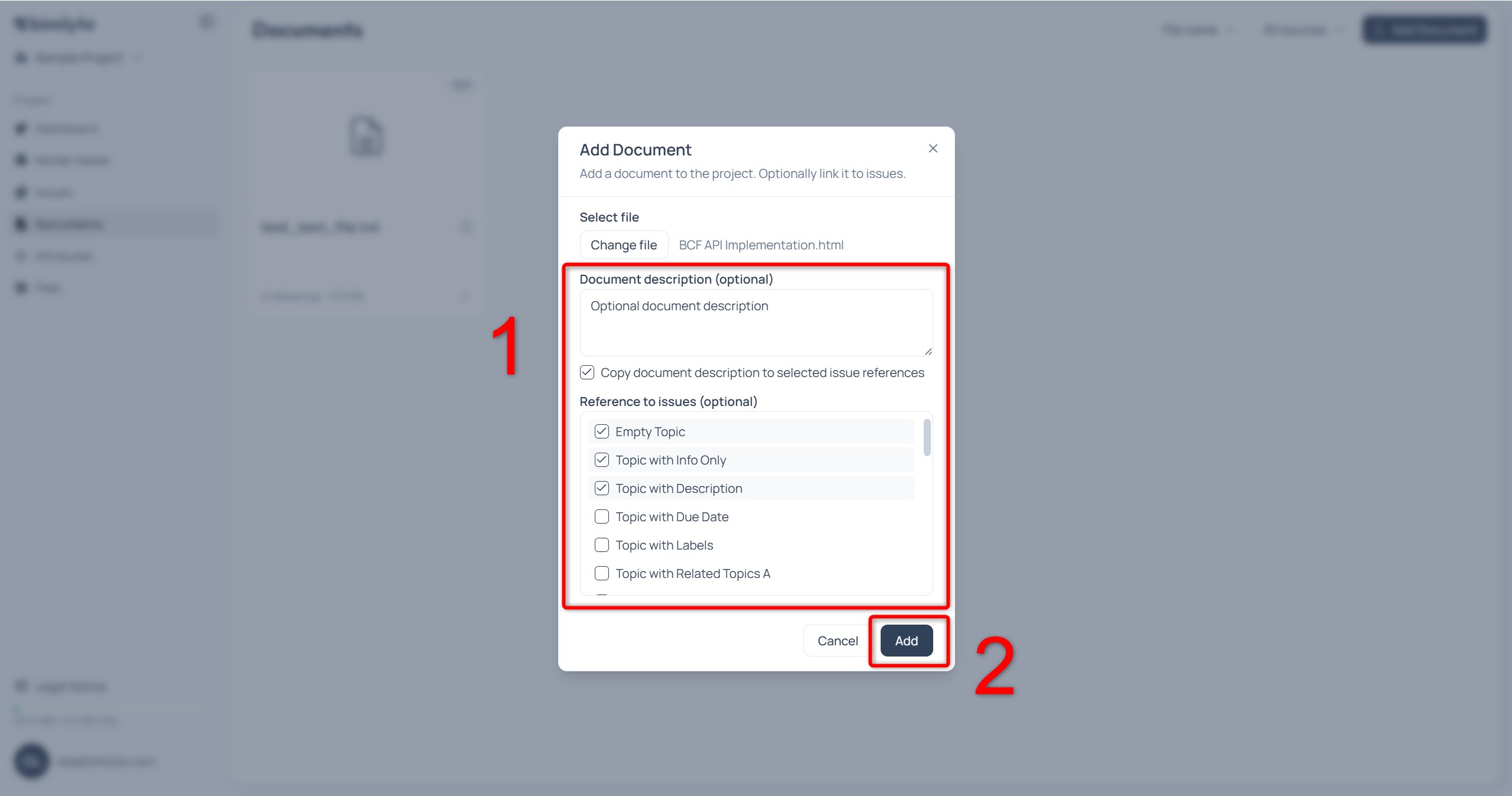

Add details and references (optional)
You can add a description, and select the issues this document should be referenced in. Both are optional — you can change them later. Click Add.

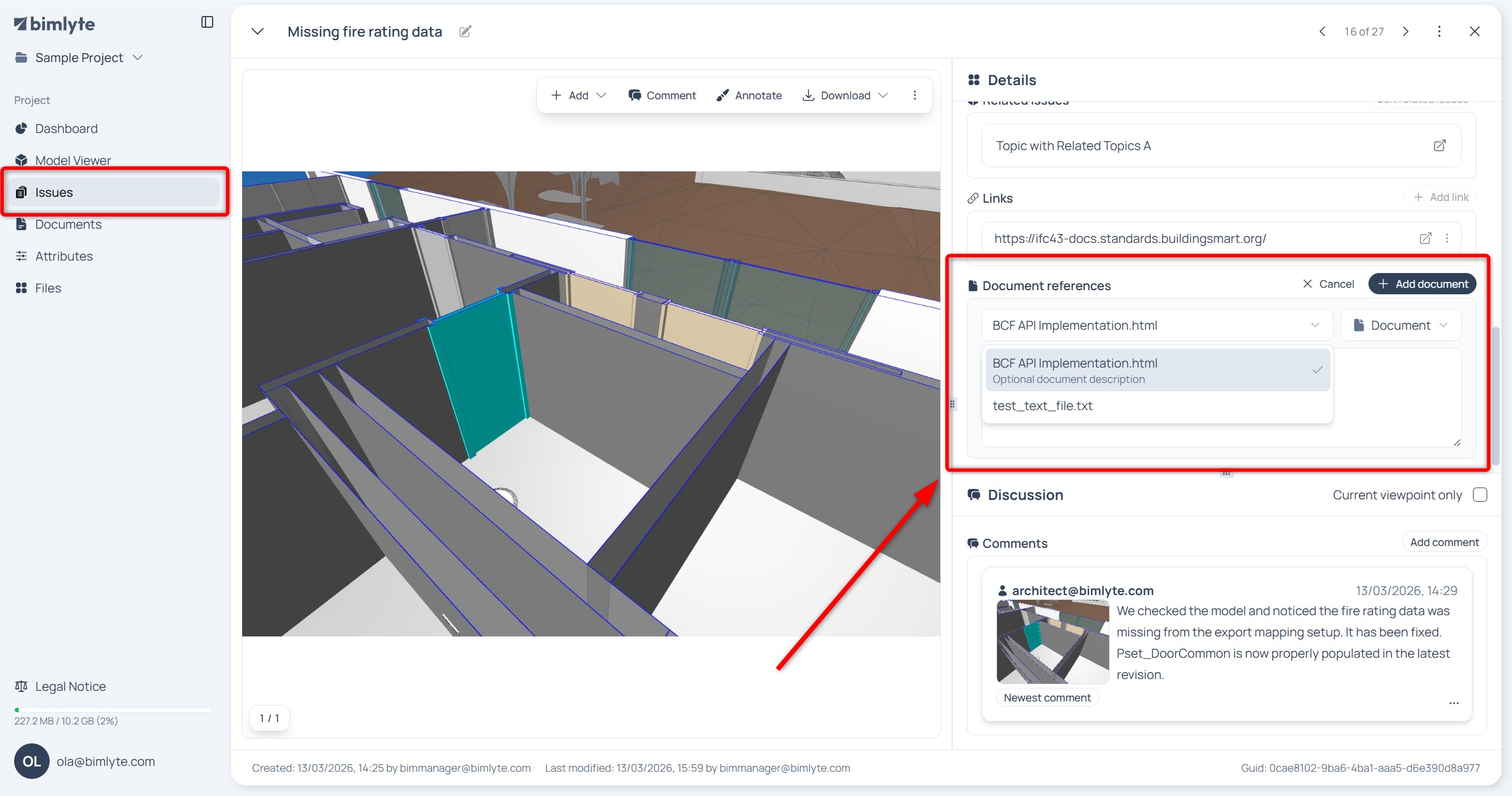

Add document references to issues
You can also add document references directly from the issue details. Open any issue, find the Document References section and click Add document, then select your file and enter an optional description. To point at an external document instead, choose Link from the menu and enter the URL.
Documents are stored on your device — nothing is sent to a server — and they can be bundled into a ZIP export to hand over with the rest of the project.
